Through lightning connectors, you can charge your mobile by connecting to a computer USB port.like iPhone and iPad that comes with lightning connectors and charger that are used to make a connection with USB point with the power devices. The lightning connectors are used to charge the device.

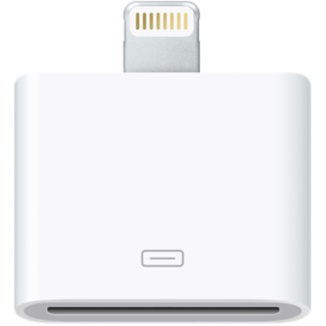

Pin 8: that is ID1 identification pinout.Pin 7: L1p that is lane one positive pin.Pin 6:L1n that is lane 1 positive pinout.Pin 5: it is a power pinout here power source connected.Pin 4: it is ID0 that is identification control zero.Pin 2: It is L0p that is lane 0 positive.There are eight pinouts it has that are described here.Official Lightning connectors consist of an authentication chip that restricts to third part manufacturers to make compatible accessories without taking Apple approval.The lightning to 30-pin adapter is compatible with a limited subset of thirty-pin signals like USB data, and USB charging.There are some adapter created by Apple that helps lightning connectors to connect with interfaces like 30-pin, HDMI, VGA, and SD card.
Lightning connector on iphone pro#
just lightning to USB 3 camera adaptor offered speed on these iPad pro models.The lightning receptacle existing on 12.9-inch iPad Pro and 10.5-inch iPad Pro models has sixteen pinouts.It supported the highest transfer speed of 5 Gbits/s.These connectors provide a data transmission speed of about 480Mbit/s like USB 2.0.it is configured such that every pinout of this connector is connected to other side pins
